WiFi Signal Propagation: How Buildings and Holiday Parks Change Coverage
WiFi does not stop at a neat circle on a plan. Radio energy spreads, weakens, passes through some materials, reflects from others and leaves unpredictable shadows—especially around metal-sided static caravans.
On this page
What happens when WiFi meets one material at a time?

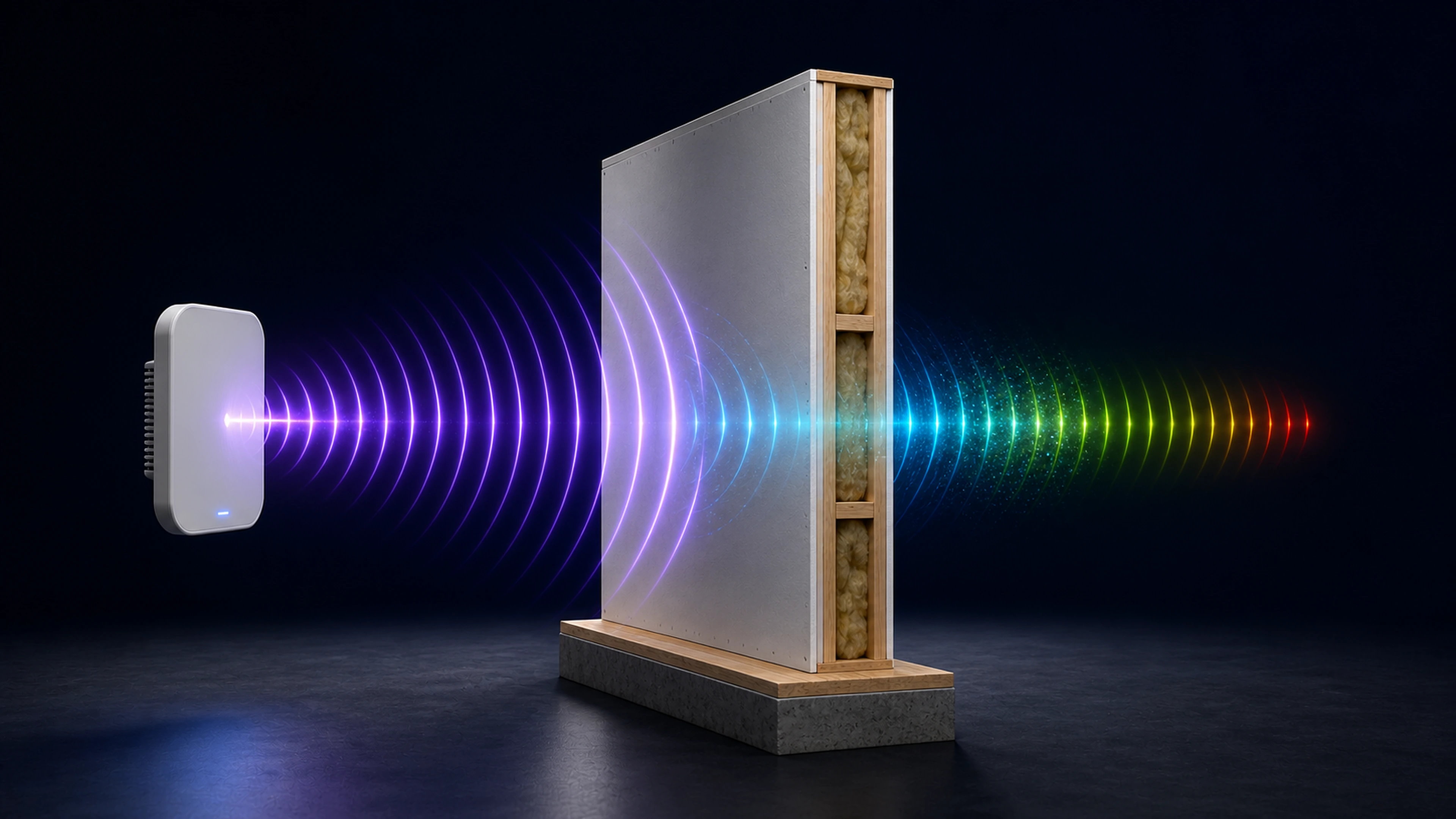

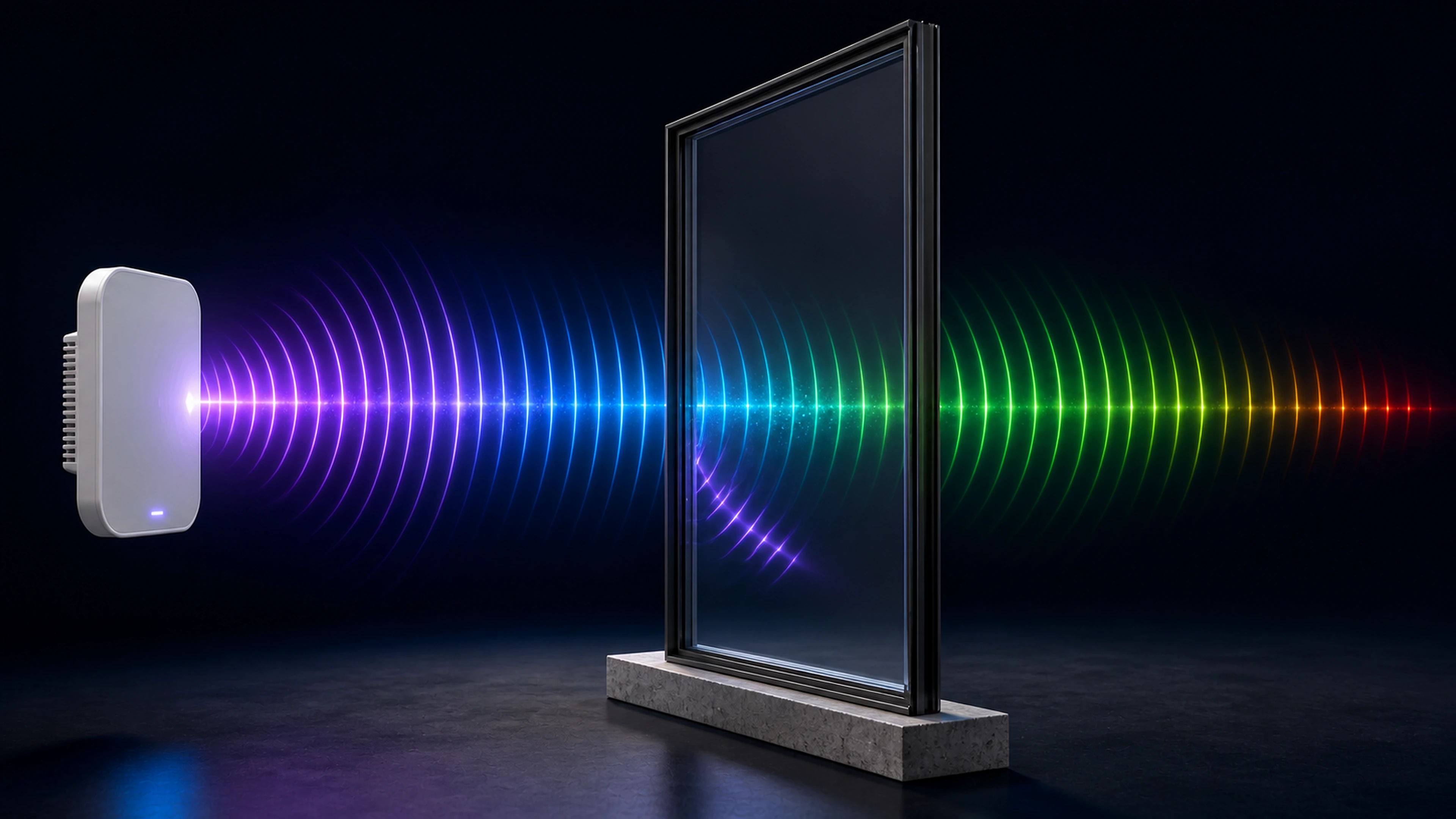

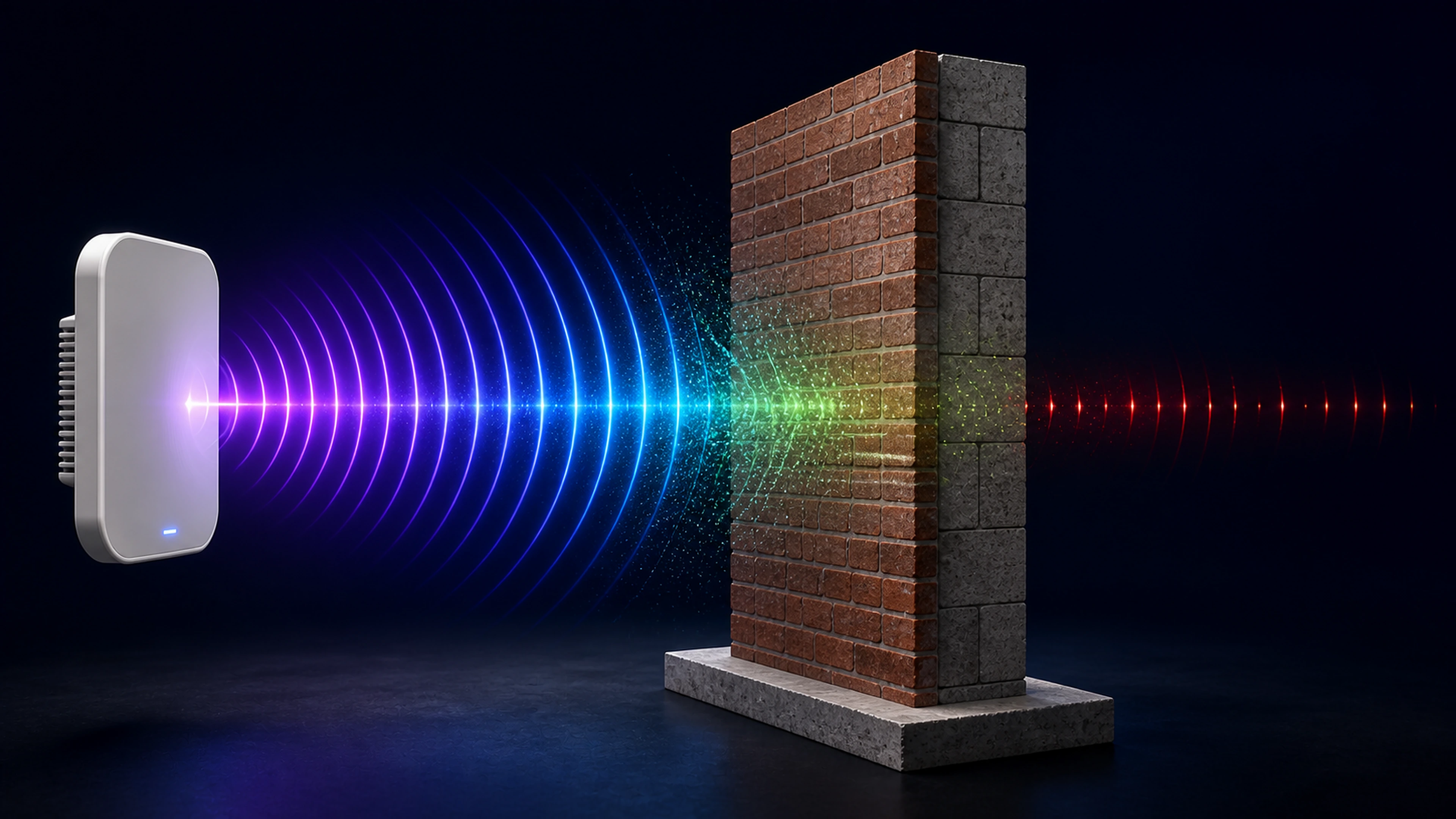

These four renders avoid pretending that one signal travels through every obstacle in sequence. The first three isolate a material; the caravan scene then applies the same RF principles to the above-roofline outdoor deployment used on many of the sites described here.
Violet marks the strongest energy nearest the access point, followed by blue, green and then red for the weakest residual signal. The colours are qualitative and do not represent fixed dBm thresholds.
BlueStrong
GreenWeakening · usable
RedWeak · poor

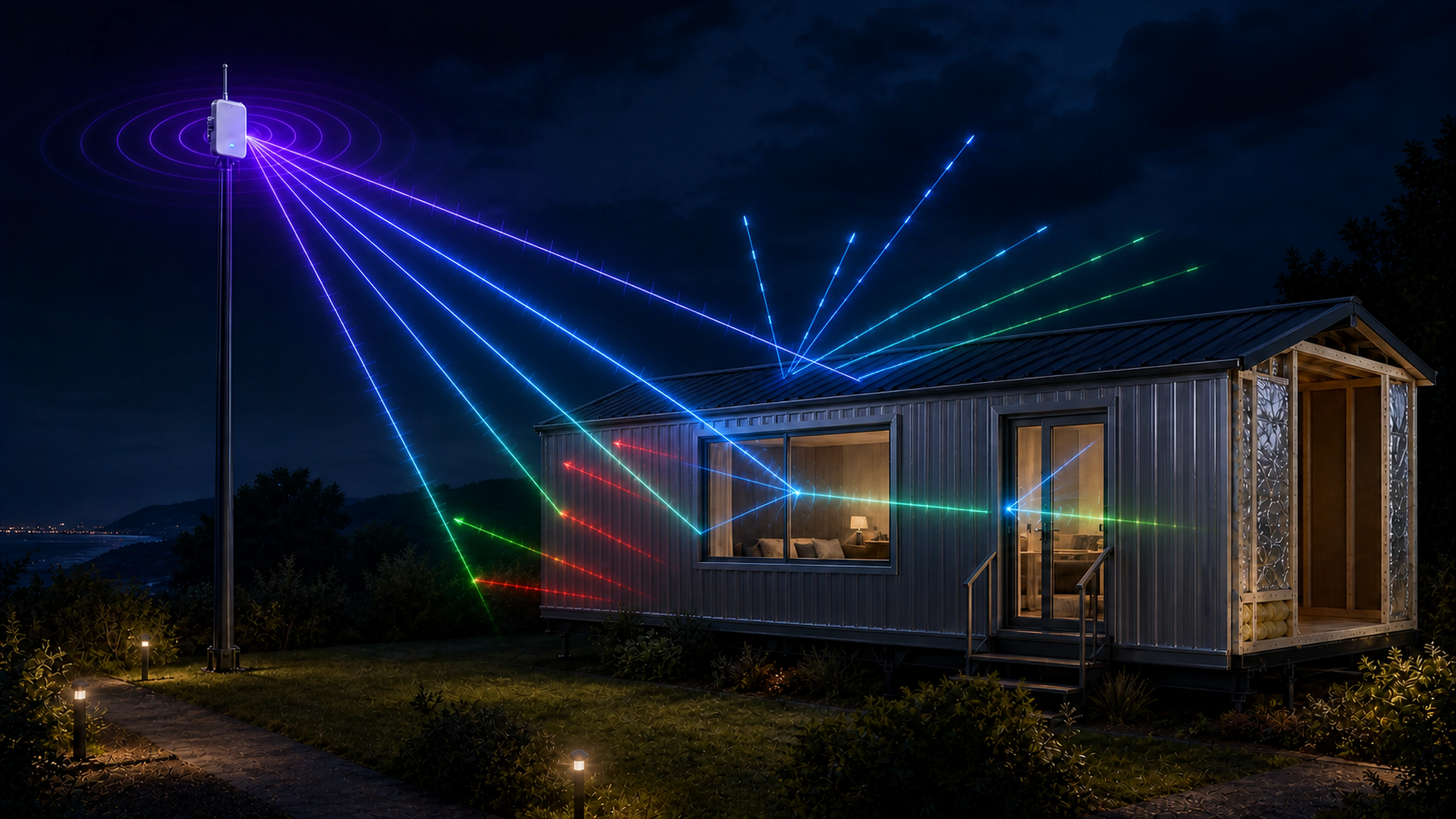

Height clears the site—not the shell
Mounting above the roofline can improve paths across the park, but an indoor device remains lower than the access point and behind the caravan envelope.
The roof may be hit first
At an oblique angle, the coated metal roof can reflect a substantial part of the arriving energy. The outgoing angle mirrors the incoming angle around the local surface normal, while roof ribs scatter weaker straight paths in several directions.
Openings become important
Windows, glazed doors, seams and other openings can offer better entry paths than a solid steel panel, although glass coatings and angle still affect the result.
The return path must climb back
A phone, television or laptop inside the unit must be heard at the elevated outdoor access point. A strong-looking downlink alone does not prove a reliable connection.
What can happen when RF energy meets the real world?
More than one behaviour usually happens at the same time. Part of a signal may pass through an object while another part is reflected or absorbed.
Spread
Energy spreads through space, so less of it is available to a receiving antenna as distance increases—even with a completely clear path.
Pass through
Some energy continues through a material, but normally at a lower level. Each additional layer adds to the loss.
Reflect
Metal, reinforced structures and some coated surfaces can bounce energy in a new direction, creating useful or troublesome alternative paths.
Absorb & scatter
Water-rich objects, people, foliage and lossy materials can absorb or scatter part of the energy instead of passing it cleanly onward.
Bend around edges
Radio energy can diffract and scatter around corners, but the result is weaker and less predictable than a clear path.
Reflections are not automatically bad. Modern WiFi can use multiple paths, but strong echoes, interference and moving obstructions can still change signal quality and packet retries from one position to another.
Why 2.4, 5 and 6 GHz behave differently
Frequency describes how quickly the radio wave oscillates. As frequency rises, wavelength becomes shorter. In like-for-like conditions, the higher WiFi bands tend to lose more energy across a clear path and through common building materials—but frequency is only one part of the result.
2.4 GHz
Wavelength approximately 12.5 cm
Usually the most forgiving band for range and ordinary obstacles. It is also heavily shared and offers less room for clean, wide channels, so “travels farther” does not necessarily mean “works faster.”
5 GHz
Wavelength approximately 6 cm
Often provides a useful balance of capacity and coverage, with more channel choice than 2.4 GHz. It is normally less tolerant of distance and dense construction.
6 GHz
Wavelength approximately 5 cm
Offers additional spectrum for compatible equipment and can support very high local capacity. Coverage is generally more localised and sensitive to obstacles. UK operating conditions depend on the equipment and current Ofcom rules.
Do not choose a band by range alone. Channel congestion, noise, permitted power, antenna pattern, channel width and the capabilities of the client device can outweigh a simple frequency comparison.
What common materials tend to do to WiFi
There is no single trustworthy “loss per wall.” Thickness, moisture, reinforcement, coatings, angle of arrival and frequency all matter. These descriptions are deliberately qualitative.
| Material or condition | Typical behaviour | Practical effect |
|---|---|---|
| Open air | Energy spreads | Signal still weakens with distance. Clear sightlines reduce obstruction loss but do not remove free-space path loss. |
| Dry timber & plasterboard | Often partial transmission | One lightweight layer may have a modest effect; several layers, insulation and services can add up. |
| Brick, block & stone | Attenuation plus some reflection | Results vary greatly with density, thickness, moisture and the route through the structure. |
| Concrete with steel reinforcement | Strong attenuation and reflection | Reinforcement can turn an apparently ordinary wall or floor into a much more substantial RF barrier. |
| Glass | Highly variable | Ordinary glazing and modern coated or metallised glass can behave very differently; visual transparency is not an RF measurement. |
| People, wet foliage & water | Absorption and scattering | A busy venue, wet trees or seasonal growth can change a path that appeared acceptable during a quiet survey. |
| Metal cladding & foil insulation | Strong reflection; little direct penetration | Static caravans can create deep RF shadows. A window or opening can admit far more energy than the adjacent solid metal panel, making indoor results highly position-dependent. |
Trying to find out what is causing a real dead spot?
A survey can compare signal level, noise, retries and the materials along the path instead of guessing from signal bars alone.
How holiday-park layout changes coverage
Two parks using the same access point can behave very differently. The number, spacing, orientation and construction of the caravans reshape the radio environment before power settings or channel planning are considered.
Sparse layout
Longer clear paths may exist, but distance still reduces signal and each caravan can cast a local shadow behind its metal shell.
Perimeter layout
An open centre can look ideal, while the facing sides, corners and interiors of the surrounding units experience very different reflected paths.
Dense layout
Rows of closely spaced units create repeated blockage and reflection. A small movement can take a device from a usable path into a deep shadow.
Planning WiFi for a holiday park?
See how managed access points, backhaul and in-caravan coverage can be designed around the real layout of the site.
Why an access point above the roofline helps—but is not the whole answer
Raising an outdoor access point can clear many immediate obstructions and improve the path across a site. In the deployments described here, the antennas are commonly only around four to five feet above the caravan roofline. The path to an indoor device therefore arrives from above at an oblique angle, where the coated metal roof may reflect energy before it reaches the windows or doors below.
Height does not make the radio omnipresent, and it does not remove the steel shell between the outdoor access point and an indoor device. “Omnidirectional” normally means broad coverage around the antenna in the horizontal plane. The three-dimensional pattern is closer to a doughnut than a ball, varies by product and may provide less energy directly above or below the antenna.
The signal leaves the elevated antenna
Its real pattern has lobes and weaker directions; it is not a perfect sphere or a flat circle.
It meets roofs and other caravans at an angle
Coated metal roofs and side panels can reflect energy away while creating weaker regions behind and below them.
The remaining energy finds the target unit
Windows and glazed doors may provide better entry paths than the solid metal skin; coatings, cladding, insulation and angle determine how much reaches the interior.
The client must send data back
A usable downlink with a weak return path can still produce slow, intermittent or failed connections.
Practical lessons for designing and diagnosing coverage
A model or illustration can explain why problems happen. A survey is what turns that understanding into a design for the actual site.
For dependable in-caravan service, the right answer may be a dedicated connection feeding an indoor access point rather than trying to force every signal through a metal shell from outdoors.
Common questions
Does 2.4 GHz always travel farther than 5 GHz?
It usually has a propagation advantage in comparable conditions, but “farther” does not guarantee a usable connection. Interference, noise, channel loading, power limits, antenna design and the client device can reverse the practical result.
Can a reflected WiFi signal still work?
Yes. Modern WiFi can make use of multiple paths, and a reflection may carry useful energy into a location without a direct path. Reflections can also combine poorly, vary with movement and reduce signal quality, so they should not be treated as predictable coverage.
Why can I see the access point but still have weak WiFi inside?
Your eyes see through a window or open line of sight, but the radio path to the device may cross coated glass, foil insulation or metal cladding. The client also has to transmit back through the same difficult environment.
Would turning the access point power up fix the shadow?
Not necessarily. More power can enlarge overlapping cells and encourage devices to remain attached to a distant access point, while doing nothing to strengthen the client’s return transmission. Placement, antenna pattern and additional planned cells are often more useful.
Technical basis: Cisco’s guidance describes attenuation, reflection, diffraction, multipath, material effects and the doughnut-like pattern of omnidirectional antennas. Ofcom’s IR 2030 and related spectrum publications define the current UK conditions for licence-exempt radio equipment.
